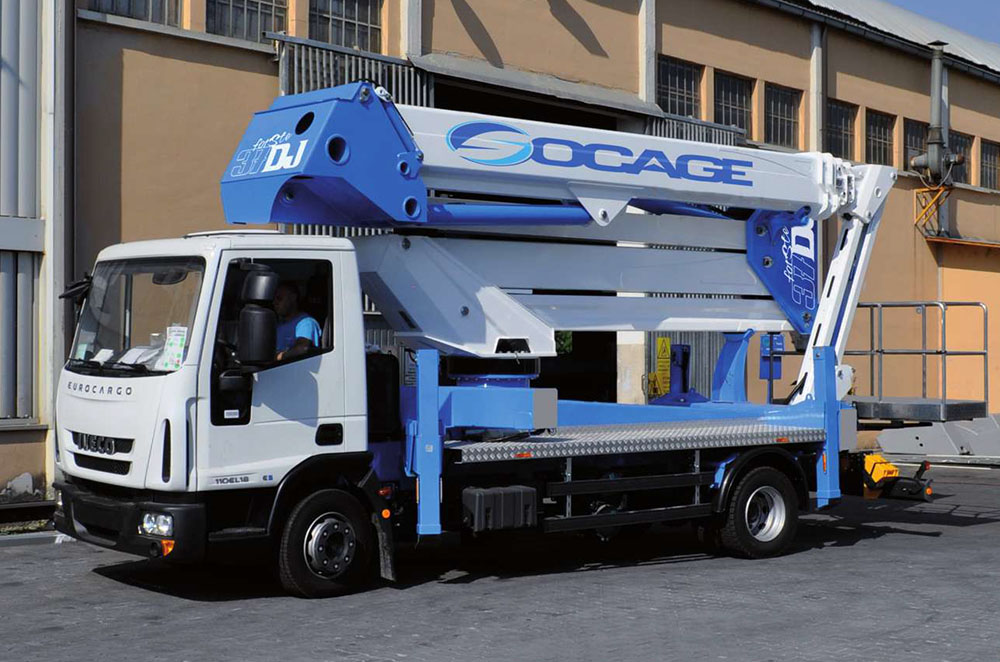

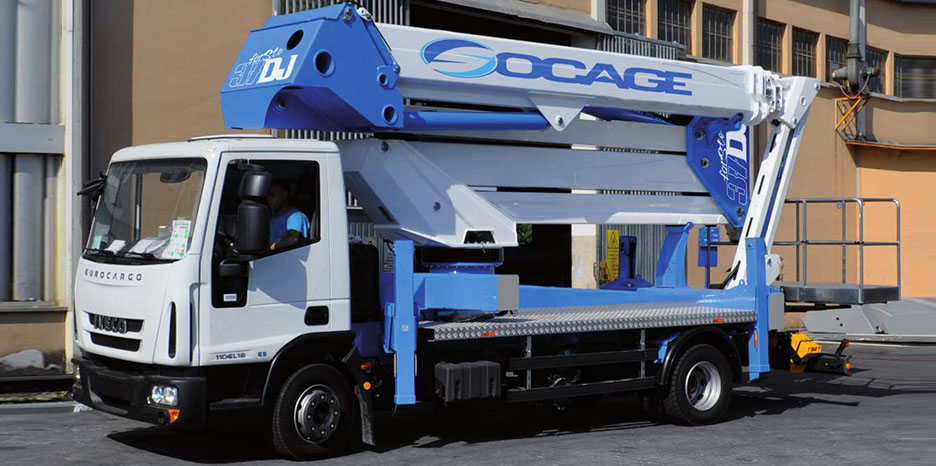

MACONSSOCAGE - 37DJ Speed - AERIAL WORKING PLATFORMS

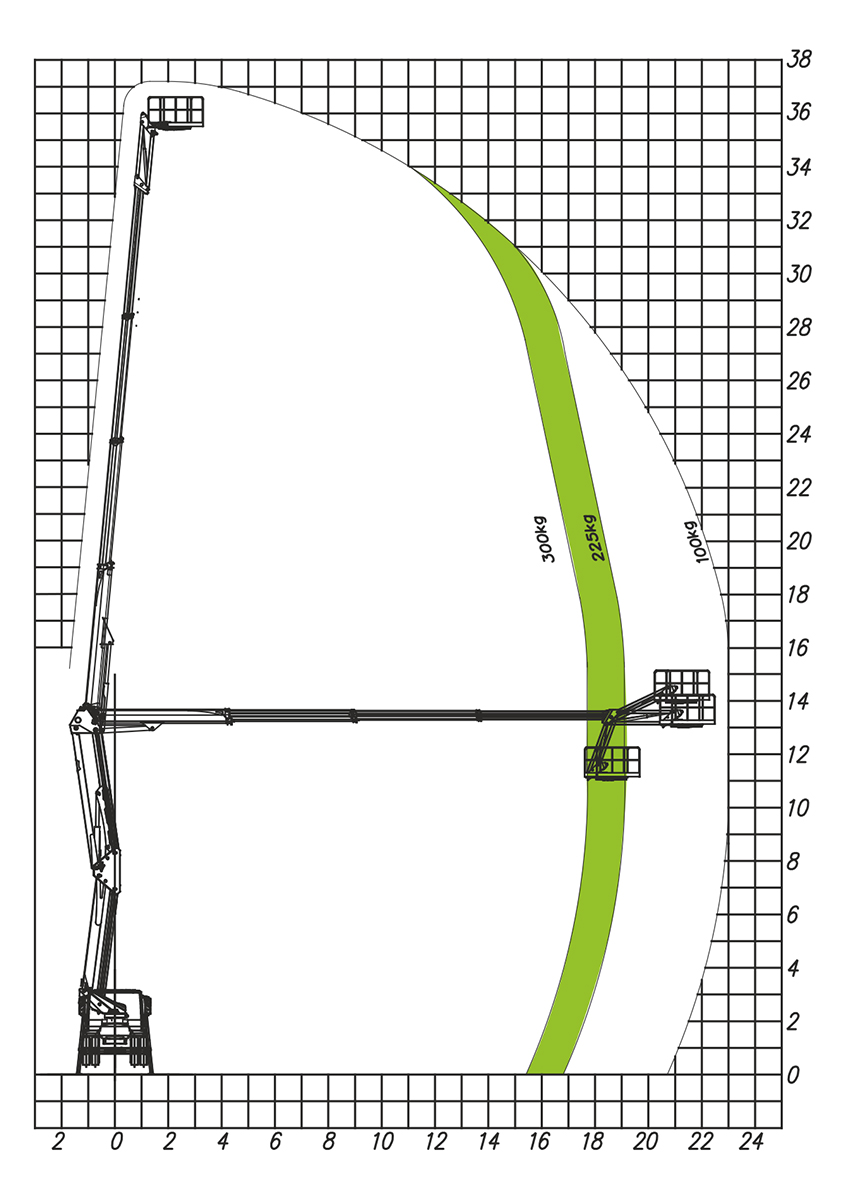

| Maximum Working Height | 37.30m |
| Maximum Platform Height | 35.30m |
| Maximum Outreach | 23m |
| Turntable Rotation / Slewing Range | 700° |
| Basket Capacity | 300kg |
| Aluminum Basket Dimension | 200x80x110 |
| Basket Rotation | 90°+90° |
| Fixed Controls | Electro Hydraulic |
| Stabilizers | HE+HE |
| PTT | 18t |
- Emergency and stop button
- Cross check of open stabilizers
- Multi axial device for visual control of frame stabilization
- Intelligent cabin anti-collision sensor
- Load limiter in the basket
- Moment limiting device with double security
- Emergency manual pump
- Chassis flatness sensor
- Flanged block valves
- Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
- Automatic leveling of the basket
- PTO automatic cut-off
- Warning horn from the basket
37DJ SPEED
